Horizon scanning: new and future therapies in the management of inflammatory bowel disease
  1. Aditi Kumar1 and
  2. Philip J Smith2
  1. 1Department of Gastroenterology, University Hospitals Birmingham NHS Foundation Trust, Birmingham, UK
  2. 2Department of Gastroenterology, Royal Liverpool Hospital, Liverpool University Hospitals NHS Foundation Trust, Liverpool, UK
  1. Correspondence to Dr Philip J Smith; drphilipjsmithbsg{at}


The current mainstay treatment modalities for inflammatory bowel disease (IBD) include immunomodulators (methotrexate and thiopurines), biologics (antitumour necrosis factor alpha (TNF-α) being the most commonly used) and other monoclonal antibodies such as the anti-integrins and anti-interleukins (IL-12/23). While ideally treatment should be initiated early in the disease process to avoid relapses and complications, the major recurring issue continues to be primary and secondary loss of response, with often ‘diminishing returns’ in terms of efficacy for the next line of therapies prescribed for patients with IBD. Additional concerns include the long-term risk factors such as malignancy and susceptibility to infections. Recently, there has been an influx of new and emerging medications entering the market that are showing promising efficacy results in patients with moderate-to-severe disease who have previously failed to respond to multiple drugs. This review will focus on these novel and emerging therapies—in essence, ‘horizon scanning’—which includes the antiadhesion agents, cytokine inhibitors, Janus kinase inhibitors, phosphodiesterase inhibitors, sphingosine-1 phosphate receptor modulators and MicroRNA-124 (miR-124) upregulators.

  • ulcerative colitis
  • Crohn's disease
  • gastrointestinal drugs
  • inflammatory bowel diseases

This is an open access article distributed in accordance with the Creative Commons Attribution Non Commercial (CC BY-NC 4.0) license, which permits others to distribute, remix, adapt, build upon this work non-commercially, and license their derivative works on different terms, provided the original work is properly cited, appropriate credit is given, any changes made indicated, and the use is non-commercial. See:

Statistics from

Request Permissions

If you wish to reuse any or all of this article please use the link below which will take you to the Copyright Clearance Center’s RightsLink service. You will be able to get a quick price and instant permission to reuse the content in many different ways.


Ulcerative colitis (UC) and Crohn’s disease (CD) are chronic inflammatory diseases that affect the gastrointestinal tract. Just a few decades ago, these conditions carried a poor prognosis but there have been significant improvements in both the understanding of the disease processes and the development of novel therapeutic modalities.1 The International Organisation for the Study of Inflammatory Bowel Diseases developed the Selecting Therapeutic Targets in Inflammatory Bowel Disease (STRIDE-1 and STRIDE-2) programmes, which recommend specific treatment goals to help direct clinical management strategies in both UC and CD for children and adults.2 3 The steering committee identified and endorsed the importance of targeting clinical response and remission, endoscopic healing, normalisation of C reactive protein/erythrocyte sedimentation rate and faecal calprotectin, prevention of disability, restoration of quality of life and normal growth in children.

The current mainstay treatment modalities for inflammatory bowel disease (IBD) include immunomodulators (methotrexate and thiopurines), biologics (antitumour necrosis factor alpha (TNF-α) being the most commonly used) and other monoclonal antibodies such as the anti-integrins and anti-interleukins (IL-12/23). While ideally treatment should be initiated early in the disease process to avoid relapses and complications,4 5 the major recurring issue continues to be primary and secondary loss of response,6 7 with often ‘diminishing returns’ in terms of efficacy for the next line of therapies prescribed for patients with IBD. Indeed, most clinical trials demonstrate a response rate of under 60%, which only worsens with each failing drug particularly when the withdrawal reason from the first drug is primary failure.8 Recently, there has been an influx of new and emerging medications entering the market that are showing promising efficacy results in patients with moderate-to-severe disease who have previously failed to respond to multiple drugs. This review will focus on these novel and emerging therapies—in essence, ‘horizon scanning’—which will include therapies that are currently in late phase 2 and phase 3 studies and should become globally available in the next 1–2 years. Subsequently, we will focus our discussion on the subcutaneous and oral anti-TNFα preparations, antiadhesion agents, cytokine inhibitors, Janus kinase (JAK) inhibitors, phosphodiesterase (PDE) inhibitors, sphingosine-1 phosphate (S1P) receptor modulators and Micro-RNA-124 (miR-124) upregulators. Figure 1 provides an overview of the mechanisms of action for new and future therapies in this review.

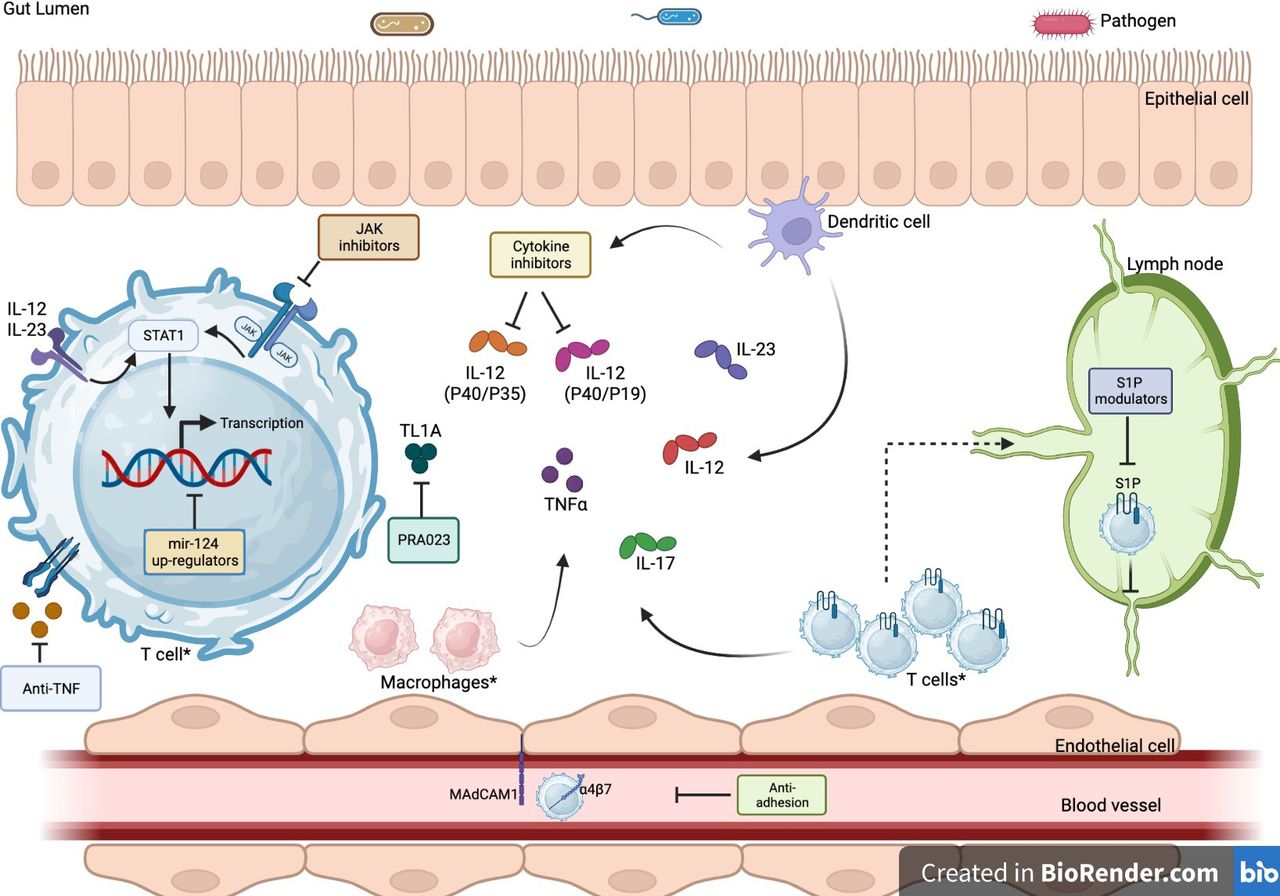

Figure 1

Overview of the mechanisms of action for new and future therapies in the management of inflammatory bowel disease. Antitumour necrosis factor alpha (anti-TNFα) agents include infliximab, adalimumab, golimumab, AVX-470 and OPRX-106. Janus kinase (JAK) inhibitors: tofacitinib, filgotinib and upadacitinib. Cytokine inhibitors: ustekinumab, which targets interleukin (IL) 12, subunit p40/p35; risankizumab, mirikizumab, guselkumab and brazikumab target IL-23, subunit p40/p19. Sphingosine-1-phosphate (S1P) receptor modulators: amiselimod, ozanimod, etrasimod and fingolimod. Antiadhesion agents: vedolizumab, etrolizumab and ontamalimab. The microRNA-124 agent is obefazimod. * indicates the cells which phosphodiesterase (PDE) inhibitors such as apremilast act upon. Image created through the use of MAdCAM-1, mucosal addressin cell adhesion molecule 1; STAT, signal transducer and activator of transcription; T cell, T lymphocytes; TL1A, tumour-necrosis factor-like cytokine 1A; α4β7, alpha 4 beta 7.


The introduction of anti-TNFα therapies in the late 1990s revolutionised the realm of medical therapy and is still considered as the best first-line treatment for both UC and CD.9 Infliximab has also consistently demonstrated to be the most effective drug in the treatment of perianal fistulating CD.10 11 The development for subcutaneous and oral routes of administration are underway and show promising preliminary results.


The infliximab biosimilar CT-P13 (Remsima, Inflectra) is identical to the reference infliximab with similar physiochemical characteristics. In 2017, the NOR-SWITCH trial demonstrated that switching from infliximab originator to CT-P13 was not inferior to continued treatment with infliximab originator.12 This study, however, combined all disease conditions including UC, CD, rheumatoid, psoriatic and spondylarthritis and was not powered to show non-inferiority in individual diseases. Ye et al demonstrated the intravenous formulation (CT-P13 IV) to be non-inferior from the infliximab originator in patients with active CD.13

Soon thereafter, the subcutaneous CT-P13 formulation arrived, providing the opportunity for patients to self-administer their medication. Schreiber et al initially demonstrated non-inferiority of subcutaneous CT-P13 to intravenous CT-P13.14 Moreover, the efficacy, safety and immunogenicity outcomes did not differ between patients receiving the subcutaneous or intravenous groups. The REM-SWITCH study published in 2022 confirmed that switching from intravenous to subcutaneous infliximab 120 mg every other week was safe and well-accepted, with a low risk of relapse in patients with IBD. The study further recommended to increase the subcutaneous dose to 240 mg for those patients receiving 10 mg/kg intravenous infliximab.15 Colombel et al recently presented the findings of their LIBERTY-CD phase 3 study.16 Patients with CD were initially given intravenous 5 mg/kg CT-P13 at weeks 0, 2 and 6 as induction therapy and patients who had a clinical response at week 10 were randomised to receive either the subcutaneous 120 mg CT-P13 or placebo every 2 weeks for 54 weeks. Results demonstrated that at week 54, the subcutaneous CT-P13 was more effective than placebo in maintaining clinical remission (62.3% and 32.1%, respectively, p<0.0001) and response (65.8% and 38.4%, respectively, p<0.0001), endoscopic response rate (51.1% and 17.9% respectively, p<0.0001) and corticosteroid-free remission (39.8% and 22.7% respectively, p=0.04). A real-world study that included 181 patients with IBD demonstrated high treatment persistence rate of 92.3% when switching from intravenous infliximab to subcutaneous CT-P13 with no difference between weekly versus alternate weekly injections.17 This study included 25 patients with perianal CD, of which only two patients developed disease worsening and had to be switched back to the intravenous formulation. While median infliximab levels increased from a baseline of 8.9 μg/dL to 16 μg/dL at 3 months, only 7.7% developed antibodies to infliximab. Importantly, patient acceptance and satisfaction rates were high in this study.

It is known that being able to self-administer medication improves ease of convenience for patients, optimises medical resources and reduces hospital-associated costs.18 There are multiple additional patient benefits including reduced travel, loss of productivity and costs associated with fuel and hospital parking.19 Unfortunately, the risk of serious side effects remains, including reactivation of tuberculosis, opportunistic infections and long-term risk of malignancy.14 20 It would be ideal to be able to develop an anti-TNFα antibody therapy that not only delivers antibodies directly to the site of inflammation in the gut but simultaneously avoids systemic exposure and immunosuppression. Of great interest is the ongoing production of two oral anti-TNFα therapies that are exploring the efficacy of treating IBD while hopefully also reducing the systemic side effects.


AVX-470 and AVX-470m are oral polyclonal bovine-derived anti-TNFα therapies produced from the colostrum of cows that have been immunised with recombinant human or murine TNF, respectively. Bhol et al demonstrated these oral medications to be functionally comparable with infliximab in in vitro studies with mice.21 Furthermore, orally administered AVX-470m effectively reduced disease severity in several mouse models of IBD by penetrating the colonic mucosa and delivering anti-TNF to the site of inflammation with minimal systemic exposure. Human trials thus far have showed AVX-470 to be safe and well tolerated in patients with UC at a dose of 3.5 g/day.22 23 Further studies are ongoing.


OPRX-106 is an oral plant-cell expressing recombinant TNF fusion protein (rTNFR-Fc). The rTNFR-Fc consists of the soluble form of the human TNF2 receptor fused to the Fc fragment of a human IgG1 antibody domain, which imparts it a longer serum half-life. The plant cell wall contains cellulose which serves as a natural protective agent against the gastric environment.24 Preclinical studies with OPRX-106 demonstrated improvement in colitis-induced mice.25 Safety and exploratory immune modulatory effects of orally administered OPRX-106 has recently been shown in a phase 1 human study.26 Almon et al published their results in 2021 demonstrating clinical response and remission with OPRX-106 in 67% and 28%, respectively, in patients with mild to moderate UC.24 No immune suppression was noted by the lack of bone marrow suppression or alterations in subsets of lymphocytes. While further data are awaited, these results no doubt provide an exciting avenue to explore for larger controlled studies in patients with IBD.


Tumour-necrosis factor-like cytokine 1A (TL1A) is an upstream regulator of pro-inflammatory cytokines and fibrosis signals. PRA023 is an anti-TL1A monoclonal antibody currently in development for multiple inflammatory/fibrotic diseases. A phase 2 induction study (ARTEMIS-UC) assessed the efficacy and safety of intravenous PRA023 (1000 mg on day 1 and 500 mg at weeks 2, 6 and 10) in moderately to severely active UC.27 The primary endpoint was clinical remission at week 12 with secondary endpoints being endoscopic and histological improvement and patient-reported outcome measures. Forty-eight per cent of patients in the treatment group had been exposed to at least one advanced therapy, which included biologics and/or JAK inhibitors/S1P modulators. A significantly greater proportion of patients who received PRA023 achieved clinical remission at week 12 compared with placebo (26.5% vs 1.5%, respectively; p<0.0001) and endoscopic improvement in 36.8% vs 6%, respectively; p<0.0001. No serious adverse events, opportunistic infections or infusion reactions were reported in the treatment group. The treatment group, however, did report a higher number of COVID-19 infections.

A similar phase 2a study for patients with CD (APOLLO-CD) demonstrated clinical remission rates at week 12 of 49% in the treatment group vs 16% in placebo group (p<0.001) and an endoscopic response of 26% vs 12%, respectively (p<0.001).28 At least 70.9% of patients were previously treated with at least one biological therapy and over 50% had two or more biological therapies. Phase 3 studies for both UC and CD are now ongoing.

Antiadhesion agents

A key contributor to chronic inflammation is altered leucocyte recruitment and there are multiple molecules that regulate the trafficking of leukocytes out of lymph nodes and into sites of inflammation within the gastrointestinal tract.29 One of the targets is the α4β7 integrin, which is a glycoprotein that resides on the surface of leukocytes, including T and B cell lymphocytes, natural killer cells and eosinophils.30 It interacts with the mucosal addressin-cell adhesion molecule 1 (MAdCAM-1) on the intestinal vasculature allowing for the efflux of lymphocytes into the intestine.31 MAdCAM-1 is predominantly expressed on the endothelium of high endothelial venules in the gut and gut-associated lymphoid tissues, and has been shown to be upregulated in IBD.32 Table 1 summarises the phase 3 trials of all the antiadhesion agents in both UC and CD.

Table 1

The evidence for the use of anti-adhesion agents in phase 3 maintenance studies for both Crohn’s disease (CD) and ulcerative colitis (UC)

Subcutaneous vedolizumab

Vedolizumab is a humanised monoclonal IgG1 antibody specific for the α4β7 integrin, which allows for gut-specific blockage of lymphocyte trafficking. The intravenous route is currently used for the induction and maintenance of both UC and CD.33 34 In 2021, a randomised trial (VISIBLE 1) investigated the efficacy of subcutaneous vedolizumab compared with intravenous vedolizumab or placebo in patients with UC.35 All patients received 300 mg of intravenous vedolizumab at weeks 0 and 2. Patients who had a clinical response at week 6 were then randomly assigned maintenance treatment with either 2-weekly subcutaneous vedolizumab 108 mg, 8-weekly intravenous vedolizumab 300 mg or placebo. The primary endpoint was clinical remission at week 52, defined as a total Mayo score of ≤2 with no subscore >1. The subcutaneous group demonstrated clinical remission rates of 46.2% compared with 42.6% intravenous and 14.3% placebo (p<0.001). The subcutaneous group also demonstrated greater endoscopic improvement. Subcutaneous and intravenous safety profiles were similar although the incidence of injection-site reactions was more frequent in patients receiving the subcutaneous route. However, majority were mild and none resulted in discontinuation. The VISIBLE-2 study similarly investigated the subcutaneous use in patients with CD, showing clinical remission rates of 48% compared with 34% in the placebo group (p=0.008).36 Real-world data have since confirmed its efficacy and also demonstrated considerable cost-effectiveness against intravenous treatment of 15%.37


Etrolizumab is a monoclonal anti-integrin antibody that specifically binds to the β7 subunit of both α4β7 and αEβ7 integrins. This allows etrolizumab to regulate inflammatory cell migration to the intestinal system and modulates its actions on the intestinal epithelium.38

Four phase 3 studies have been published investigating the use of 105 mg subcutaneous etrolizumab given 4 weekly in moderately to severely active UC.39–42 Two of these studies directly compared the efficacy against an anti-TNF agent and placebo.39 42 Only two trials demonstrated a significant benefit in induction of remission—HIBISCUS trial39 (19.4% etrolizumab vs 6.9% placebo, p=0.017) and the HICKORY trial40 (18.5% etrolizumab vs 6.3% placebo, p=0.0033). None of these trials, however, demonstrated a significant benefit in maintenance of remission in the primary or coprimary endpoints. Etrolizumab also did not prove to be superior to anti-TNF (adalimumab39 or infliximab42) with numerically similar results in both primary and secondary endpoints. No unexpected safety signals were reported in any of the trials.

The BERGAMOT study was a phase 3 trial investigating the efficacy of etrolizumab in moderately to severely active CD.43 Induction dosing was randomised to either 105 mg (every 4 weeks) or 210 mg (at weeks 0, 4, 8 and 12) of subcutaneous etrolizumab compared with placebo. At week 14, all patients who responded were rerandomised to receive either 105 mg etrolizumab or placebo every 4 weeks for 52 weeks. Coprimary endpoints were clinical remission and endoscopic improvement (≥50% reduction in the Simple Endoscopic Score for CD) at weeks 14 and 66. Interestingly, a significantly higher proportion of patients achieved clinical remission and endoscopic improvement with etrolizumab compared with placebo during the maintenance phase (clinical: 35% vs 24%, respectively p=0.0088; endoscopic: 24% vs 12%, respectively p=0.0026)), but not during induction (clinical: 33% vs 29%, p=0.52, endoscopic: 27% vs 22%, p=0.32). The most common treatment related adverse event were injection site erythema, arthralgia and headache.


Ontamalimab is a fully human monoclonal antibody that binds selectively and with high affinity to MAdCAM-1.44 The TURANDOT II45 and OPERA II46 studies are phase 2 trials for exploring the safety and tolerability of 4-weekly subcutaneous ontamalimab in UC and CD, respectively. Dosing was either 75 mg or 225 mg. In both studies, ontamalimab was well tolerated with the most common adverse events being worsening of disease. Clinical benefit was seen in both studies although a large proportion of patients required dose escalation to 225 mg. The results from these studies supports phase 3 clinical testing of ontamalimab in both UC (FIGARO-UC; NCT03290781) and CD (CARMEN-CD; NCT03566823), which is currently ongoing.

Cytokine inhibitors

Studies have shown that IL-12, 22 and 23 are involved in IBD pathogenesis with IL-12 and 23 playing a crucial role in the maintenance of inflammation.47 It is suggested that IL-12 is involved in the initiation of intestinal inflammation caused by epithelial barrier disruptions and works together with IL-23 to maintain chronicity.48 However, there has been more recent research suggesting that IL-12 possesses some anti-inflammatory activity in animal models.49 Table 2 summarises the phase 3 studies of the current cytokine inhibitors being tested for UC and CD.

Table 2

The phase 3 maintenance trial evidence for the use of cytokine inhibitors specifically targeting IL-23 subunit p19 in both Crohn’s disease and ulcerative colitis

Ustekinumab biosimilar

Ustekinumab is a fully human IgG1 monoclonal antibody that blocks the biological activity of interleukin-12 and interleukin-23 through their common p40 subunit.50 It was the first anti-IL drug developed and approved for CD and UC, given intravenously for the first dose and then subsequently given subcutaneously.50 51 The ustekinumab patents are due to expire in September 2023 in USA and in January 2024 in Europe,52 allowing for biosimilars to be brought into the market. Seven different biosimilars of ustekinumab (BAT2206, CT-P43, FYB202, NeuLara, ABP654, SB17, AVT04) are currently in development and going through phase 1–3 trials, although all publicly available information on these clinical trials thus far involves patients with plaque psoriasis.53 The European Medicines Agency has approved the application for AVT04 in patients with plaque psoriasis and is expected to be released in the second half of 2023.

Rani therapeutics has partnered with Celltrion to develop an oral drug delivery programme for a ustekinumab biosimilar, RT-111.54 This is designed to be a capsule, RaniPill, that is, ingested into the stomach and once it reaches the intestine, the capsule injects the drug into the intestinal wall. The RaniPill intends to replace subcutaneous or intravenous injection of biologics and drugs with oral dosing and is designed to administer drugs with bioavailability that is comparable to a subcutaneous injection. While initial phase 1 trials have shown promising results, further work is still needed to determine its future within the IBD armamentarium.

In the meantime, there are other monoclonal antibodies that are being developed to specifically target IL-23 through their subunit p19.


This is a new humanised monoclonal antibody that has only recently been released in the UK and the USA for use in moderate to severely active CD.55 56 This was following the release of two induction studies (ADVANCE and MOTIVATE)57 and one maintenance study (FORTIFY),58 which demonstrated that subcutaneous risankizumab was a safe and efficacious treatment for both induction and maintenance of CD. At week 52, greater clinical remission and endoscopic response rates were reached with 360 mg risankizumab versus placebo (clinical: 52% vs 41%, respectively; endoscopic: 47% vs 22%, respectively). Adverse event rates were similar among groups with worsening disease, arthralgia and headache the most frequently reported in all treatment groups.

A phase 3 induction study (INSPIRE) for patients with UC is currently ongoing. AbbVie has released an early press statement with preliminary results demonstrating that risankizumab has met the primary endpoint of clinical remission at week 12 compared with placebo (20.3% vs 6.2%, respectively, p<0.00001).59 The patients enrolled in this study were intolerant or showed inadequate response to conventional and/or advanced therapies. Key secondary endpoints were also met at week 12, including endoscopic improvement (36.5% vs 12.1%, p<0.00001) and histological endoscopic mucosal improvement (24.5% vs 7.7%, p<0.00001).


Mirikizumab is a humanised IgG4 monoclonal antibody that is administered intravenously or subcutaneously every 4 weeks and studies have explored induction doses of 200 mg, 600 mg and 1000 mg. The phase 2 trial for patients with UC demonstrated mirikizumab to be effective in inducing a clinical response after 12 weeks (50 mg: 15.9%, p=0.066; 200 mg: 22.6%, p=0.004; 600 mg: 11.5%, p=0.142 vs placebo 4.8%).60 The subsequent phase 3 study (LUCENT-2) met its primary endpoint with clinical remission achieved by 63.6% from the treatment arm 200 mg vs 36% from the placebo arm at week 40 (p<0.001).61 Furthermore, the rates of corticosteroid-free remission, endoscopic remission and histological endoscopic mucosal remission were all superior in the treatment arm compared with the placebo, regardless of patients receiving previous advanced therapy. Similarly, D’Haens et al conducted two randomised control phase 3 trials of mirikizumab in UC with an induction dose of 300 mg for 12 weeks followed by maintenance dose of 200 mg. Significantly higher percentages of patients in the mirikizumab group compared with the placebo group had clinical remission at week 12 (24.2% vs 13.3%, p<0.001) and at week 40 (49.9% vs 25.1%, p<0.001).62

The phase 2 study for CD (SERENITY) has also shown superiority in its primary endpoint of inducing endoscopic response at week 12 with intravenous mirikizumab (200 mg: 25.8%, p=0.079; 600 mg: 37.5%, p=0.003; 1000 mg: 43.8%, p<0.001 vs placebo 10.9%). Patients who responded were rerandomised to either intravenous or subcutaneous 300 mg. Endoscopic response at week 52 was 58.5% and 58.7% in the intravenous and subcutaneous groups, respectively.63 The frequency of serious adverse events and discontinuations were higher in the non-randomised maintenance cohort with the most commonly reported adverse events being headache, weight gain and nasopharyngitis. The phase 3 study (VIVID) is ongoing.


The humanised IgG1 monoclonal antibody, guselkumab, is being investigated for its intravenous use in CD with results from the GALAXI-1 phase 2 study.64 Of the patients recruited, 50% had refractory disease to prior biological therapy. At week 12, all three dose regimens (200 mg, 600 mg and 1200 mg at weeks 0, 4 and 8) of guselkumab induced greater clinical and endoscopic improvements compared with placebo, with a favourable safety profile. Preliminary results from the phase 3 induction study outcomes for patients with UC (QUASAR) has shown a significantly greater proportion of patients treated with either 200 mg or 400 mg guselkumab achieved the study’s primary endpoint of clinical response compared with placebo at week 12 (200mg: 61.4%, p<0.001; 400 mg: 60.7%, p<0.001; placebo: 27.6%).65 Adverse events were similar in both treatment and placebo groups, with no reports of serious infections, malignancy or death.

The VEGA trial was a proof-of-concept study that explored the combination use of guselkumab with golimumab in UC.66 In this study, patients were randomly assigned (1:1:1) to either combination therapy (subcutaneous golimumab at weeks 0, 2, 6 and 10 followed by subcutaneous guselkumab at week 0, 4 and 8 and then 8 weekly thereafter), golimumab monotherapy or guselkumab monotherapy. At week 12, 83% in the combination group achieved clinical response compared with 61% in the golimumab monotherapy group and 75% in the guselkumab monotherapy group. At week 50, however, this reduced to 63% in the combination group, 76% in the golimumab group and 65% in the guselkumab monotherapy group.


Brazikumab is an IgG2 monoclonal antibody which has gone through phase 2 trials in both CD67 and UC.68 To recruit into the CD study, patients had to have failed a TNFα-inhibitor. Clinical response at week 8 demonstrated significant improvement in patients receiving 700 mg brazikumab subcutaneously every 4 weeks compared with placebo (49.2% vs 26.7%, p=0.010), however, this was not sustained at week 24 (53.8% vs 57.7%). EXPEDITION was the long-term phase 2 study exploring the use of brazikumab in UC. The company affiliated with brazikumab, AstraZeneca, released a press statement in June 2023 announcing the discontinuation of the brazikumab IBD programme, which includes the phase IIb/III INTREPID trial for CD and the EXPEDITION trial for UC and their respective open-label extension trials.69 The cause for the study discontinuation is unknown.

JAK inhibitors

Thus far, the drugs described that are in development are administered either intravenously or subcutaneously, resulting in significant costs associated with their delivery and monitoring.70 This is a burden for both the healthcare system and for patients. The JAK inhibitors are unique and attractive with their route of oral administration.

The JAK family comprises four intracellular tyrosine kinases—JAK1, JAK2, JAK3 and tyrosine kinase 2 (TYK2), and seven transcription factors (STATs). The binding of these factors activates the JAK-STAT pathway via different cytokine receptors and leads to changes in the levels of the immune mediators, such as interferons and interleukins71 (figure 2). Table 3 summarises the phase 3 studies of the JAK inhibitors in UC and CD.

Figure 2

The JAK/STAT pathway. Distinct intracellular signalling pathways are mediated by the JAK family of tyrosine kinases. The JAK-STAT pathways use second messengers to convey extracellular information to the nucleus to affect target gene expression and cellular responses. Image created through the use of GM-CSF, granulocyte-macrophage colony-stimulating factor; IFN, interferon; IL, interleukin, JAK, Janus kinase; STAT, signal transducer and activator of transcription; TYK, tyrosine kinase.

Table 3

The phase 3 maintenance trial evidence for the use of Janus kinase inhibitors in both Crohn’s disease and ulcerative colitis


Tofacitinib is a reversible, competitive inhibitor of JAK1 and JAK3 with a lesser degree of interaction with JAK2. While tofacitinib has been approved for use in UC in 2018 by the European Medicines Agency,72 testing in CD was stopped after phase 2 trials failed to meet its primary endpoints.73 74 The OCTAVE induction and maintenance UC studies demonstrated greater improvement in patients receiving 10 mg two times per day of oral tofacitinib compared with 5 mg two times per day tofacitinib and placebo.75 76 At 52 weeks, clinical remission was achieved in 41% in the 10 mg group compared with 34% in the 5 mg group and 11% in the placebo group. In both trials, however, the rates of overall and severe infection were higher in the tofacitinib group than the placebo group. Further studies demonstrated that tofacitinib was effective and safe in patients previously unresponsive to TNF inhibitors77 78 and could be used as an effective induction strategy with intravenous corticosteroids in patients hospitalised with acute severe UC.79 A great concern for the ongoing use of tofacitinib is the risk of deep vein thrombosis and pulmonary embolism, with a pooled analysis demonstrating thrombotic events occurring in patients receiving the higher dose of tofacitinib 10 mg two times per day.80 Animal studies have also shown tofacitinib to be feticidal and teratogenic.81 While human data are limited with small sample sizes, the findings thus far do not suggest an adverse safety profile in pregnancy. However, best practice recommendations including the European guidelines state tofacitinib is contraindicated in pregnancy.82


Filgotinib is an oral JAK1 selective inhibitor with a half-life of 6 hours for the parent compound and 23 hours for the active metabolite.83 This allows for once-daily dosing at either 100 mg or 200 mg. The SELECTION phase 2b/3 study for UC demonstrated greater clinical remission rates with 200 mg compared with placebo at week 58 (37.2% vs 11.2%, respectively).84 The incidence of adverse events was similar between the treatment and placebo groups.

The comparative FITZROY study for patients with CD also demonstrated greater induced clinical remission rates in the 200 mg group compared with placebo (47% vs 23%, p=0.0077).85 The phase 3 DIVERSITY study results for CD should be released soon. The phase 2 DIVERGENCE study is exploring the efficacy and safety of filgotinib for the treatment of perianal fistulating CD, with preliminary abstract results at the recent European Crohn’s and Colitis Conference demonstrating a greater fistula response at week 24 with the 200 mg filgotinib group (47.1%) compared with placebo (25%).86 87 Fistula remission had similar results with 47.1% in the 200 mg group compared with 16.7% in the placebo group.

Filgotinib is considered harmful to the fetus according to animal study findings and thus remains contraindicated in pregnancy.82


Upadacitinib is an oral and highly selective JAK1 inhibitor with a 74-fold selectivity for JAK1 over JAK2. It has a half-life of 4 hours, of which 80% is metabolised in the liver and 20% is renally excreted.83 Studies in both UC88 (U-ACHIEVE, U-ACCOMPLISH) and CD89 (U-EXCEL, U-EXCEED, U-ENDURE) have demonstrated a superior response with upadacitinib compared with placebo in patients where corticosteroids, immunosuppressants and/or biological therapies resulted in an inappropriate response, a loss of response or intolerance. For patients with UC, statistically significantly more patients achieved clinical remission with upadacitinib 45 mg at 8 weeks. In the maintenance study, clinical remission was achieved by more patients receiving upadacitinib 30 mg (52%) vs 15 mg (42%) and placebo (12%) at week 52, p<0.0001. Adverse events with upadacitinib in the UC studies included worsening of disease, acne, arthralgia, nasopharyngitis and elevation in creatine phosphokinase levels.

For patients with CD, a significantly higher percentage of patients receiving 45 mg were in clinical remission than placebo at week 12. At week 52, a higher percentage of patients had clinical remission with 15 mg (37.3%) or 30 mg (47.6%) than with placebo (15.1%), p<0.001 with an endoscopic response of 27.6% with 15 mg compared with 40.1% with 30 mg and 7.35 with placebo. Herpes zoster infections occurred more frequently in the 45 mg and 30 mg groups, whereas hepatic disorders and neutropenia were seen more frequently in the 30 mg group. Gastrointestinal perforations developed in four patients in the 45 mg group and one patient each in the 30 mg and 15 mg group. It is unclear, however, whether these perforations were a result of the drug or disease itself.

Although no human studies have assessed the safety of this drug in pregnancy, upadacitinib was found to be teratogenic in animal studies and thus is not currently recommended for use in pregnancy.90

PDE inhibitors

PDEs are a group of enzymes that catalyse cyclic guanosine monophosphate and cyclic adenosine monophosphate breakdown, which results in the upregulation of proinflammatory cytokines.91 PDE-4 is of greater interest in IBD as it regulates the inflammatory response by increasing the production of proinflammatory mediators, such as TNF-α, IL-23, and decreases the production of anti-inflammatory mediators, such as IL-1092 93 (figure 3). Table 4 summarises the current phase 3 trials for the PDE inhibitors being studied in UC and CD.

Figure 3

The inflammatory response regulation through the inhibition of the phosphodiesterase-4 enzyme. Image created through the use of GM-CSF, granulocyte-macrophage colony-stimulating factor; IFN, interferon; IL, interleukin; TNF-α, antitumour necrosis factor alpha.

Table 4

The phase 3 maintenance trial evidence for the use of sphingosine-1 phosphate receptor modulators in both Crohn’s disease (CD) and ulcerative colitis (UC)


Apremilast is an oral PDE4 inhibitor that inhibits TNF-α and matrix metalloproteinase-3 production in the lamina propria mononuclear cells of patients with IBD.94 It is currently approved for the treatment of psoriasis and psoriatic arthritis.95 The phase 2 trial for UC published in 2020 did not meet the primary endpoint of clinical remission.96 Doses were set at 30 mg or 40 mg, however, minimal benefit was observed with dose escalation. At week 12, clinical remission was achieved by 31.6% of patients receiving 30 mg of apremilast compared with 21.8% in the 40 mg group and 12.1% in the placebo group. The most common adverse effect reported was headache in 21.1% in treatment group vs 6.9% in control group. In previous studies with psoriatic disease, apremilast has been associated with weight loss and an increased, but rare, risk of depression.97 There are no current studies to explore the effects of apremilast in patients with CD.

Other PDE inhibitors are in the very early stages of development currently.

S1P receptor modulators

S1P is a bioactive lipid mediator that activates the 5 cell surface G protein-coupled receptors S1P1 - S1P5. S1P1 is the most ubiquitous of the S1P receptors and is found in both lymphocytes and endothelial cells.98 99 The interaction between S1P and S1P1 regulates lymphocyte movement from the spleen and lymph nodes into the systemic circulation. S1P1 receptor modulators bind to S1P receptors, which prevents the cell surface agonist from signalling.100 This causes the degradation of S1P inside the cells with an overall effect of fewer circulating lymphocytes into the bloodstream, leading to decreased inflammation and tissue damage101 but also absolute lymphocyte count (figure 4).

Figure 4

Lymphocyte migration and the effect of sphingosine-1 phosphate (S1P) receptor modulators in the gut. S1P receptor modulators regulate sequestration of T cell lymphocytes. S1P receptor modulators regulate sequestration of T lymphocytes via (1) binding to the S1P receptor, (2) leading to the internalisation of the S1P receptor, (3) altering the S1P gradient and (4) inducing downregulation of T lymphocytes into the bloodstream. This has an overall effect of blocking lymphocyte trafficking to the gut. Image created through the use of


Fingolimod was the first-generation non-selective S1P receptor modulator developed for the treatment of multiple sclerosis in 2010.102 However, it is not currently being used for IBD due to its numerous serious adverse reactions, including brady-arrhythmias, atrioventricular blocks, basal cell carcinoma and respiratory and lung injuries.103 104


Ozanimod is an oral selective immunomodulatory agonist for S1P1 and S1P5 receptors, which are located on endothelial cells and oligodendrocytes, respectively. Ozanimod has a half-life of up to 11 days, requiring 55 days for complete washout after treatment cessation.105 It was approved for the treatment of multiple sclerosis in 2020.106

Ozanimod was granted approval by the Food and Drug Administration for treatment of moderate to severe UC in 2021. This was following positive results from a phase 3 study (TOUCHSTONE and TRUE NORTH), demonstrating a higher proportion of treatment group patients compared with placebo achieving clinical remission during both induction (18.4% vs 6%, respectively; p<0.001) and maintenance at week 10 (37% vs 18.5%, respectively; p<0.001).107 Recent results further demonstrated that remission was maintained long-term with comparable efficacy at 46 and 94 weeks.108 Initial phase 2 results for CD (STEPSTONE) have shown endoscopic, histological and clinical improvements within 12 weeks of initiating ozanimod.109 Phase 3 placebo-controlled trials (YELLOWSTONE) are underway.110

Ozanimod avoids interaction with S1P2 and S1P3, thereby reducing the risk of serious adverse effects seen in fingolimod.107 However, the risk of cardiovascular events is still present and precautions must be taken prior to treatment initiation. Due to the risk of bradycardia, a baseline ECG should be performed in all patients prior to initiating therapy. Cardiology evaluation is recommended in patients with a prolonged QT interval, history of arrhythmias or heart block, ischaemic heart disease or heart failure.111 A slow uptitration is also advised over 7 days such that the effective dose is first used on day 8, potentially delaying the onset of symptom relief.107 Contraindications to ozanimod include the use of monoamine oxidase B inhibitors, which increases the risk of drug–drug and drug–food interactions. Other contraindications include severe untreated sleep apnoea, second-degree or third-degree heart block, sick sinus syndrome or sinoatrial block (unless the patient has a pacemaker in situ), and a history of myocardial infarction, stroke, transient ischaemic attacks, unstable angina or class III/IV heart failure in the last 6 months.111 Due to the lack of human data, ozanimod is contraindicated during pregnancy.82


Etrasimod is an oral selective immunomodulator agonist for the S1P1, S1P4 and S1P5 receptors. It has a half-life of 33 hours, resulting in a relatively fast wash-out period of 1 week,29 112 113 which is particularly important for family-planning patients. Earlier studies also demonstrated that etrasimod partly reduces circulating levels of specific subsets of adaptive immune cells (T and B cells) with no notable effects on the innate immunity cells such as natural killer cells and monocytes,114 allowing for the assumption that etrasimod would not result in an increased incidence of infections.

Following the positive response from the phase 2 and open-label extension trials for etrasimod in UC,112 115 the phase 3 ELEVATE UC were recently published to evaluate the safety and efficacy of the 2 mg oral daily dose of etrasimod compared with placebo in moderate-to-severe UC.105 The primary endpoint was clinical remission at weeks 12 and 52 with secondary endpoints of endoscopic improvement, symptomatic remission, histological remission and corticosteroid-free remission. In the study, approximately 30% of recruited patients had previously failed or were intolerant to at least one conventional, biological or JAK therapy. Results demonstrated that a significantly greater proportion of patients in the etrasimod group achieved clinical remission compared with the placebo group at week 52 (32% vs 7%, respectively; p<0.0001). In fact, by week 52, all key secondary endpoints had been met, including sustained clinical remission (18% vs 2%, respectively) and corticosteroid-free remission (32% vs 7%). While adverse events were reported in 71% of patients in the etrasimod group vs 56% in the placebo group, most were considered mild or moderate. The most frequently reported adverse events included anaemia, headache and worsening of UC or UC flare. Overall infections, serious infections and opportunistic infections were similar between the treatment groups. No malignancies were reported but elevated liver enzymes were seen with a higher incidence in the treatment group. Nine events of bradycardia were seen in the treatment group, all discovered by day 2 of treatment initiation, with none reported in the placebo group. Five of these bradycardia events, however, led to study discontinuation.

The phase 2/3 CULTIVATE study reported induction data from the first substudy (substudy A) exploring the doses of 2 mg and 3 mg of oral etrasimod in patients with CD.116 The primary endpoint of endoscopic response was achieved in 21.4% and 9.8% in the 2 mg and 3 mg groups, respectively. There were a greater number of adverse events reported in the 3 mg vs 2 mg groups although most were mild or moderate and general incidence (4.8% and 2.4%, respectively) and rate of discontinuation (7.3% and 4.8%, respectively) was low in both groups. The extension phase of substudy A and phase 2b substudy 1 are forthcoming.


Amiselimod is an oral drug that modulates the S1P1 receptor. Trial results for patients with CD were published in 2021 and updated in 2022, which demonstrated that after a 12-week course of 0.4 mg, amiselimod was not superior to placebo for inducing clinical response. Moreover, seven participants had serious adverse events including infections and cardiac disorders, of which four patients had to discontinue the drug.117 The phase 2 Study for UC is ongoing (NCT04857112).

MicroRNA-124 (miR-124) upregulator

MicroRNAs (miRs) are small non-coding RNA oligonucleotides that regulate the expression of a large number of genes and are centrally involved in the pathogenesis of different human inflammatory diseases.118 Studies have shown that certain miRs are deregulated in IBD, specifically miR-124, leading to increased levels of STAT3 expression and the transcription activation of its downstream targets.119 STAT3 is known to be upregulated in UC and has also been implicated in the progression of UC to colon cancer.120–122


Obefazimod is designed to upregulate miR-124, an anti-inflammatory microRNA. It enhances the selective splicing of a single long non-coding RNA to generate miR-124, which downregulates cytokines and chemokines shown to promote inflammation including TNFα, IL-6, IL-17 and Th17+cells. Interestingly, obefazimod was originally developed for the treatment of HIV as ABX464 but has been repurposed for inflammatory conditions due to its anti-inflammatory effect.

A phase 2b double-blind, randomised, placebo-controlled induction trial for obefazimod demonstrated an improvement of 5 points or higher in the modified mayo score in patients with moderate-to-severe UC at week 8 of treatment.123 Three different doses were explored and all showed a significant least-squares-mean change from baseline in the modified mayo score compared with placebo (−2.9 for the 100 mg group, −3.2 for the 50 mg group, −3.1 for the 25 mg group compared with −1.9 for the placebo group). The most frequently reported adverse event was headache and the only serious adverse event was UC with two patients seen in the treatment group and three in the placebo group. The phase 3 96-week trial results are ongoing and will aim to assess the safety and efficacy of the two doses of obefazimod 25 mg and 50 mg. The global phase 3 programme will include two induction studies (ABTECT-1: NCT05507203 and ABTECT-2: NCT05507216) and the maintenance trial (ABTECT: NCT05535946) with results expected in 2024 and 2025, respectively.

Adverse effects and contraindications for the new small molecules

Table 5 summarises the adverse effects and contraindications for the new small molecules that are known to date.

Table 5

Adverse effects and contraindications for use of the new small molecules (where this information is known)

Combination therapy

The most successful example of combination therapy was demonstrated in the Study of Biologic and Immunomodulator Naïve Patients in Crohn’s Disease trial, where infliximab and azathioprine together were superior to monotherapy.124 The use of azathioprine enhanced the bioavailability of infliximab and the prevention of antibodies to infliximab. The data from the UK PANTS study further demonstrated that higher remission rates in patients receiving concomitant immunosuppressive therapy were independent of drug concentration and antibody development.125 Current research has shifted focus towards the use of advanced combination treatment where two or more advanced treatments (biological agents and/or oral small molecules) are used concomitantly. This approach may be useful in patients with refractory IBD; high-risk phenotypes such as extensive small bowel disease and/or stricturing or fistulising disease; patients with extraintestinal manifestations or concomitant immune-mediated inflammatory diseases. The most common biological combination regimen is with vedolizumab and ustekinumab, vedolizumab and anti-TNF, ustekinumab and anti-TNF. The most frequently evaluated combinations with oral small molecule drugs have been with tofacitinib and either vedolizumab or ustekinumab.126 127 The body of evidence for the use of advanced combination therapy, however, is largely composed of uncontrolled retrospective case series and cohort studies in highly refractive patients. Thus, it is difficult to extrapolate safety and efficacy of combination therapy. Although the first randomised controlled trial (RCT) evaluating dual biological therapy was in 2007 exploring the use of infliximab with the anti-integrin agent natalizumab, the primary objective was to evaluate safety and tolerability and was not powered to measure efficacy.128 The VEGA study was a phase 2 induction trial that evaluated the use of the anti-IL-23 agent guselkumab with the anti-TNF agent golimumab in patients with UC.66 Results showed that patients receiving combination therapy achieved clinical response at week 12 (83%) compared with monotherapy with either guselkumab (74.6%) or golimumab (61.1%). There are now two further phase 2 RCTs investigating combination therapy with guselkumab and golimumab in both UC (DUET-UC; NCT05242484) and CD (DUET-CD; NCT05242471). A triple combination therapy with vedolizumab, adalimumab and methotrexate is being evaluated in the EXPLORER trial (NCT02764762) in patients with CD.

Currently, the practice of advanced combination therapy is ‘off-label’ (ie, unlicensed) and carries serious risks of infections and unknown longer-term complications. The risks of ongoing active disease should be balanced against the potential risks of combination therapy with full disclosure to the patient. Choosing agents that modulate different pathways and are further apart in the cross-talk maps may increase the chance of improved efficacy. Preference of agent should be given to those with the most favourable safety profile, such as vedolizumab and ustekinumab.129 130

Faecal microbial transplant

The gut microbiome has become of great interest in the management of IBD. FMT, dietary exclusions and modifications, prebiotics and probiotics have had varied success, with the most promising therapy being FMT in patients with UC. The first international Rome consensus conference on gut microbiota and FMT in IBD was published in 2023.131 This stated that FMT may be effective in the induction of remission in mild to moderate UC, however, there is insufficient evidence to recommend its routine use for UC and should be limited to the research setting. This is based on RCTs that have demonstrated patients with UC do not sustain remission beyond 1 year after FMT treatment.132–134 In CD, there is currently insufficient evidence to recommend FMT in clinical practice and should only be used for research purposes. The data for the use of FMT in CD are very limited with mainly case reports and pilot studies rather than RCTs.135–137

Beyond the horizon

This section provides a brief overview of therapies that are in the early phase 1 or 2 trials and are still distant on the ‘horizon’ before (and if) they can become widely available as future therapies. Table 6 summarises these drugs and their current phases of development.

Table 6

New drug therapies currently in the early phases of development


This drug is a fusion protein consisting of a linked human IL-22 and crystallisable fragment of the human IgG4. The primary aim of activating IL-22 is to promote tissue regeneration without causing systemic inflammation, by increasing epithelial tight junctions, promoting mucous production and secreting antimicrobial peptides.138 A phase 1b study has shown the intravenous UTTR1147A to be safe and well tolerated in both patients with UC and healthy volunteers with the most common adverse effects being dermatological, such as dry skin, erythema and pruritis.139


Cobitolimod binds and activates toll-like receptor 9 (TLR-9) on lymphocytes and antigen presenting cells. Activation of TLR-9 leads to the induction of regulatory T-cells that produce anti-inflammatory molecules such as IL-10 while also suppressing proinflammatory TH-17 cells.140 The benefit of this drug lies in its topical enema route, which should ideally have low systemic absorption. Although early phase 2 studies for UC are promising (COLLECT and CONDUCT) phase 3 studies have not yet been registered.141 142


SER-287 is an oral formulation that fractionates spore forming bacteria to specifically target Firmicutes. The spore-forming Firmicutes, particularly the families Clostridiaceae, Lachnospiraceae and Ruminococcaceae, produce metabolites, which enhance and maintain the gastrointestinal barrier and mucosal immunity.143 This bacterium has been shown to be reduced in the intestinal microbiota in patients with UC and has become a target of interest.144 A phase 1b study demonstrated that patients with mild to moderate UC who were preconditioned with 6 days of oral vancomycin followed by 8 weeks of oral SER-287 had significantly higher rates of clinical remission compared with placebo.145


Spesolimab is a humanised monoclonal antibody that targets the IL-36 signalling pathway, which has been shown to be increased in UC. A phase 2a study demonstrated that while intravenous spesolimab was well tolerated in patients wth UC, efficacy endpoints were not met.146


PF-04236921 is a fully human IgG2 monoclonal antibody that binds IL-6, suppressing its proinflammatory effects. A phase 2 study was completed for patients with CD which showed the subcutaneous form of PF-04236921 50 mg was more efficacious than placebo in inducing response and remission at week 12. However, significant adverse events of gastrointestinal perforation and abscesses were seen in the treatment group and there are currently no phase 3 trials underway.147


IL-10 is a central anti-inflammatory cytokine that is able to modulate pro-inflammatory signals. However, producing a targeted IL-10 drug requires precarious balancing of the benefits of IL-10 without perpetuating its dose-limiting systemic side effects. AMT-101 is a novel oral human IL-10 fusion protein that is genetically fused to a non-toxic and poorly immunogenic fragment of the cholic exotoxin. Phase 1 studies on colitis-induced mice demonstrated a gut-selective response by reaching the intestinal lamina propria before delivering biologically-active IL-10 across the intestinal epithelium, thereby potentially reducing dose-limiting side effects. Phase 1b trials are currently underway in patients with UC.148


AJM300 is an oral small molecule that targets and inhibits α4 integrin. While it has the advantage of having a very short 1 day duration of action, there is a potential risk for progressive multifocal leukoencephalopathy due to the α4 blockade. Phase 2a and 2b studies showed AJM300 to be more effective than placebo in inducing clinical response, remission and mucosal healing in moderately active patients with UC but the studies were of a small sample size and a short duration of 8 weeks. Phase 3 trials are currently underway for UC.149

Stem cell therapy

Achieving sustained remission and mucosal healing continues to remain a challenge with medical drug therapies. Stem cells have the potential to directly improve chronic intestinal inflammation by modulating immune cells and repairing the intestinal mucosal barrier. Although haematopoietic stem cell therapy has been shown to improve disease activity and maintain disease remission in CD, safety is a main concern with risk of severe immunosuppression, lethality and graft rejection.150–152 Clinical studies with mesenchymal stem cell therapy have primarily focused on patients with refractory perianal fistulous CD with mixed results.153–155 The main challenge is maintaining homogeneity with uniform standards and control comparisons in the tissue source and culture of stem cells.156 157 The heterogeneity between individuals in study results ultimately affects the consistency of IBD clinical studies. There also needs to be a standardised protocol regarding infusion mode and dose and time interval of stem cells, with clear indications and contraindications yet to be established. While stem cell therapy in IBD is still very much in its preclinical stages, it has the potential to become a true cure for this debilitating disease.


The therapeutic arsenal for the management of IBD is being developed and repurposed at an accelerated rate. What has been discussed in this review is simply the ‘tip of the iceberg’. Small molecules have the added advantage of not carrying the risk of immunogenicity that occurs with biological drugs. Therefore, there is potential to use these medications on demand such as during disease flares, to avoid corticosteroid use, or in combination with a biologic to improve clinical remission by targeting multiple immune pathways.158 However, long-term, real-world and safety data for many of these new medications remain unclear. Furthermore, data in pregnancy and breast feeding are lacking and therefore limits their use in a large subset of the IBD population.82 The benefits of these new medications include oral administration which is more patient-friendly and eases the extra hospital costs required for the intravenous/subcutaneous agents. However, non-compliance with oral therapies has been well documented in patients with IBD, which may offset the advantages of these oral therapies.159 Thus, it is now important to understand and develop a precision medicine strategy that targets the right medication for the individual patient, which factors in their medical history, predictors of response, preference of administration, future family planning and disease characteristics.
